Bridge Construction

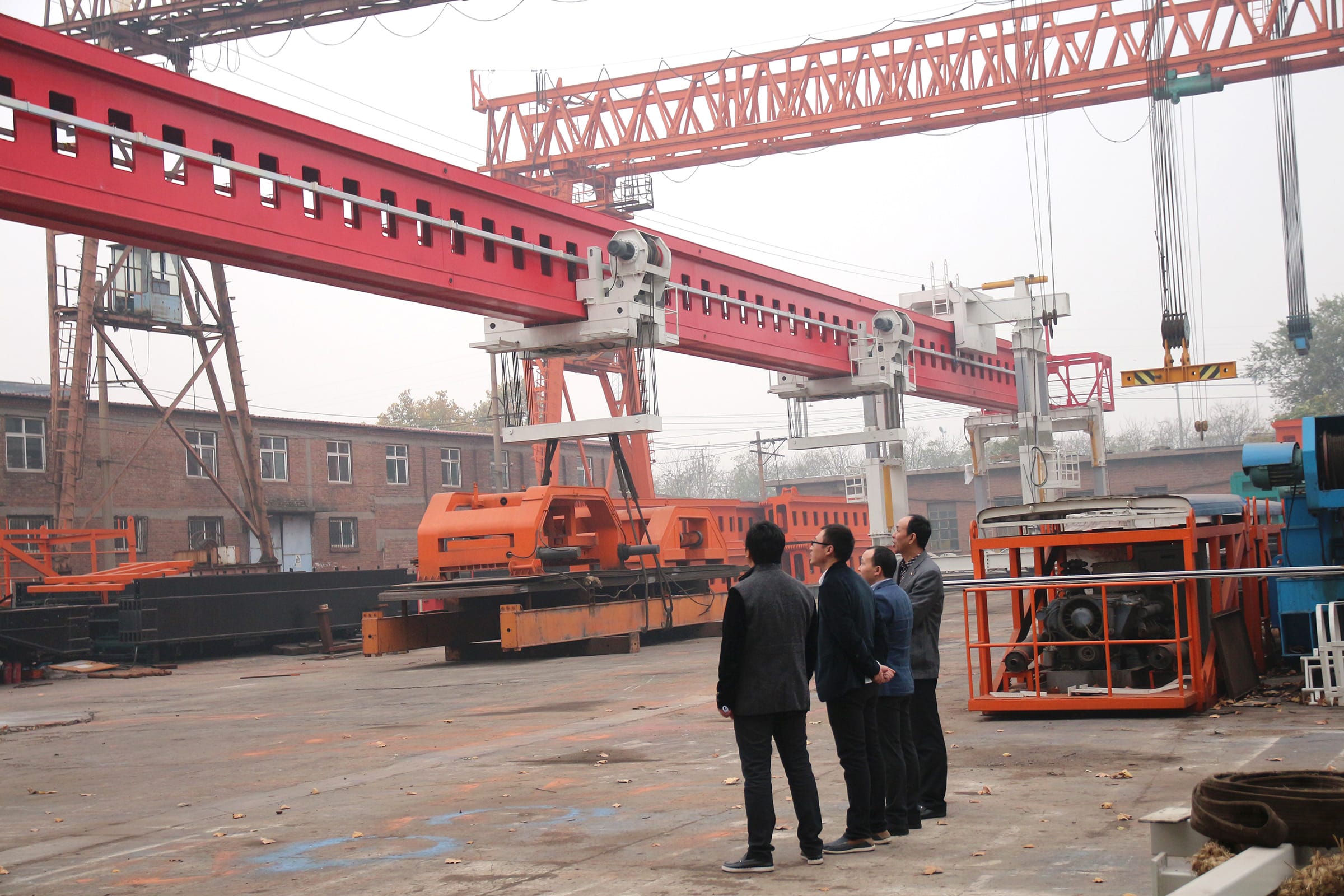

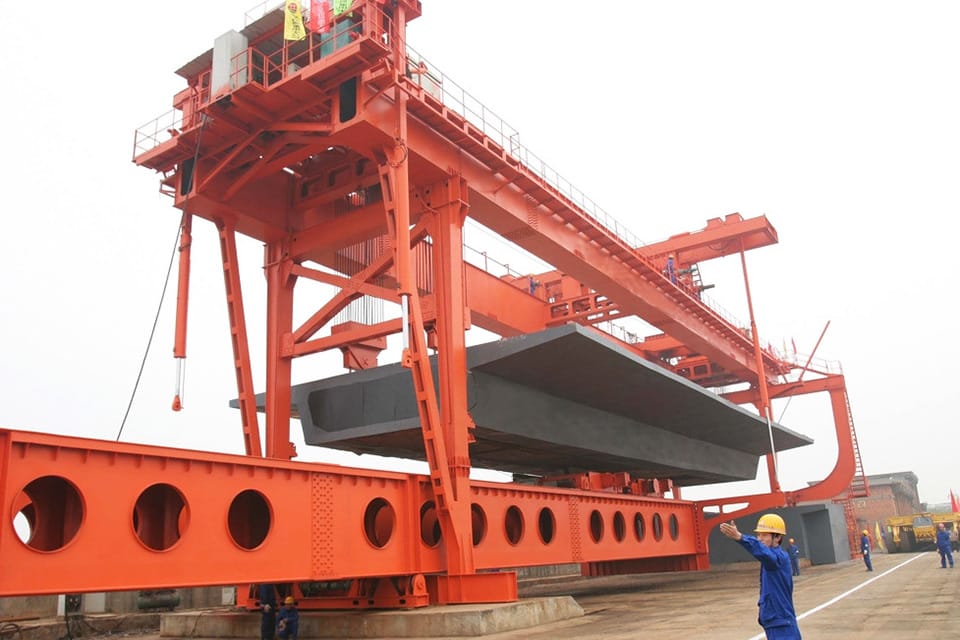

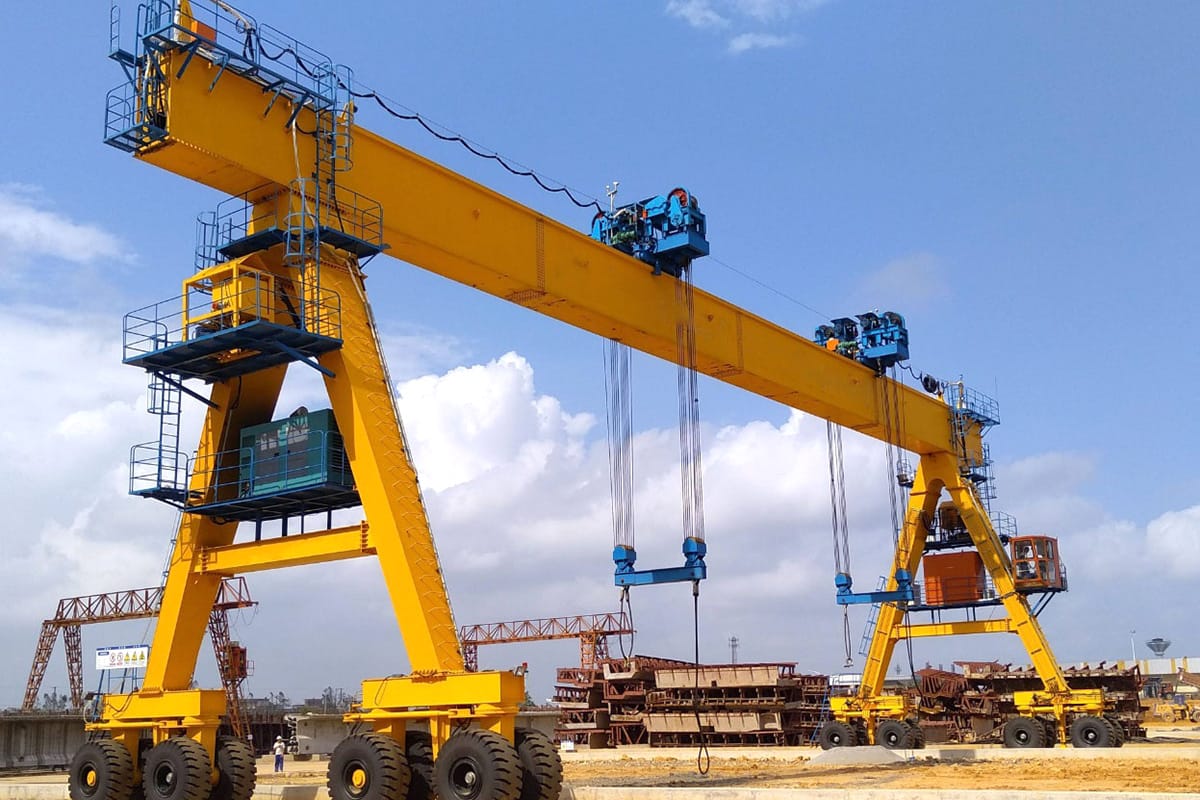

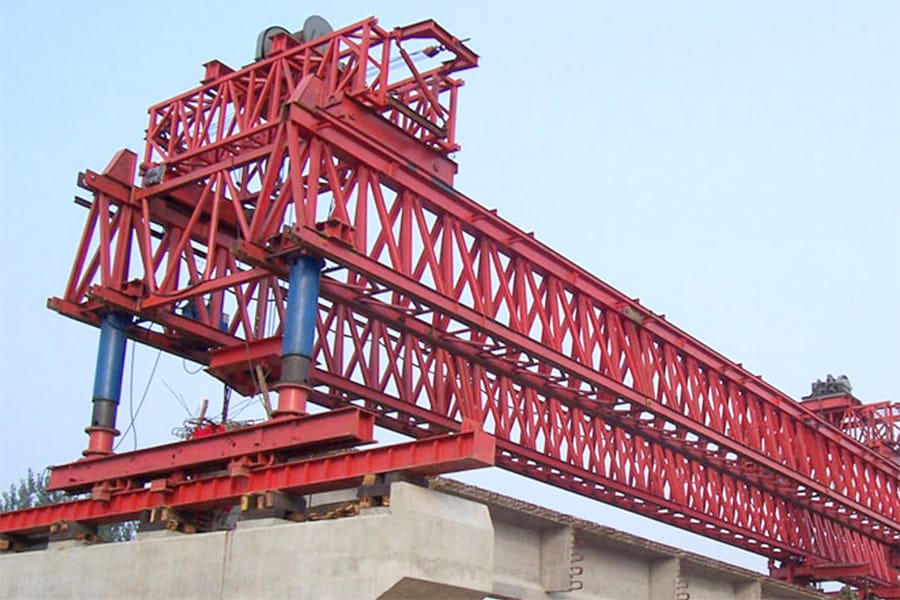

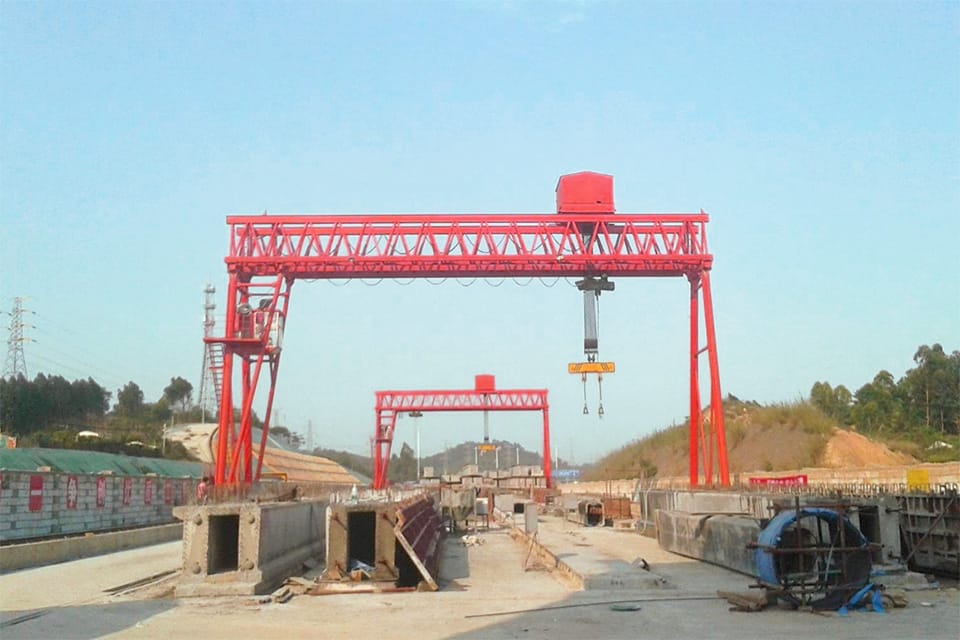

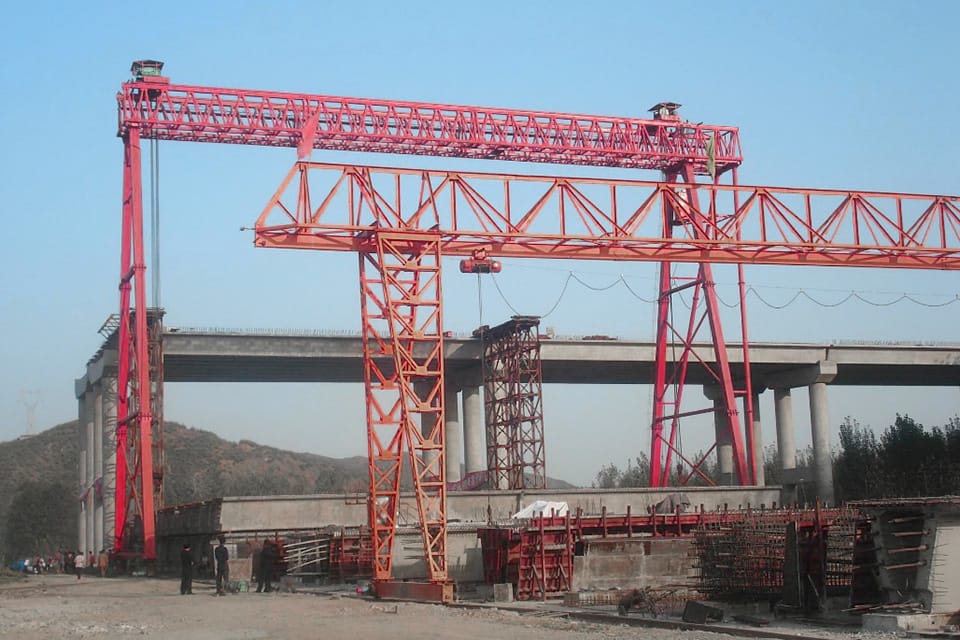

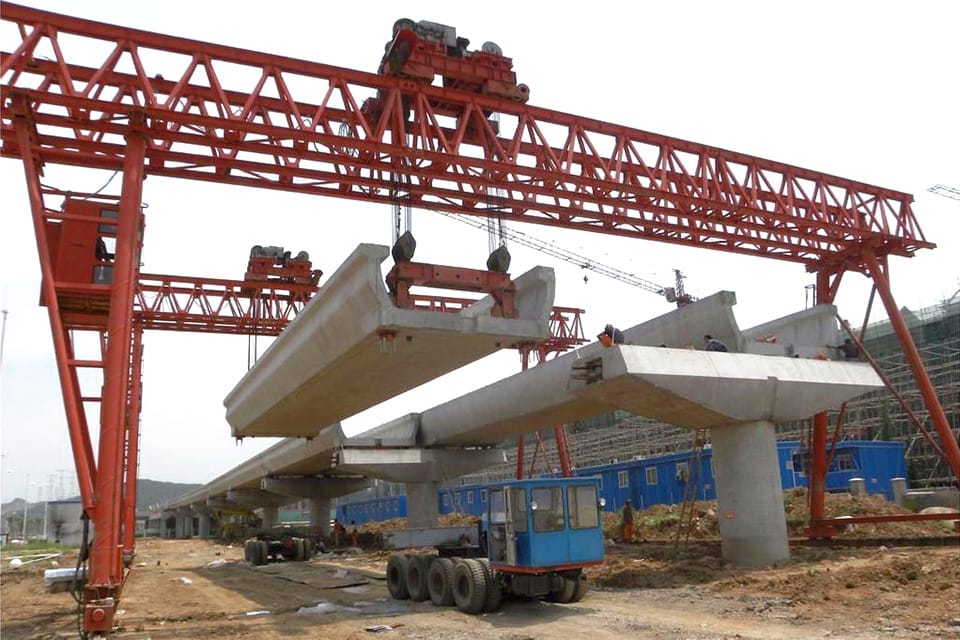

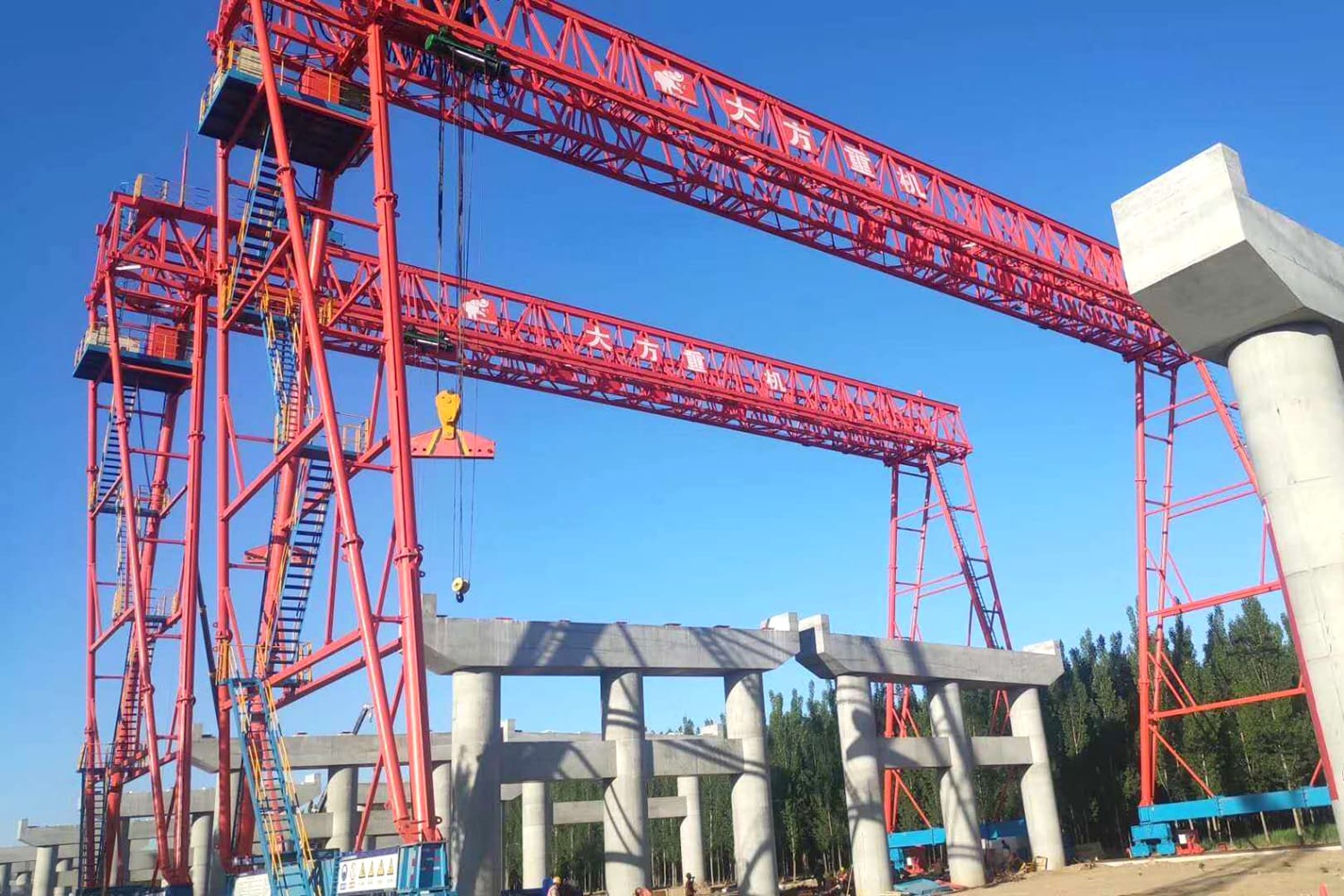

Bridges are overhead structures with carrying capacity for railroads, highways, pipelines, etc., to crossing rivers, valleys, or other obstacles. The gantry and girder cranes provide the mechanical foundation for the construction of the bridge, which can improve the efficiency of transporting heavy loads and building the bridge. In particular, the girder machine is specially designed for bridge construction. The members are connected by high-strength bolts, which is easy to disassemble and transport. It can be hoisted at the same time by two sets (the maximum lifting weight of a single set is 450T) or by a single set (the maximum lifting weight of a single set is 900T).

Loading data, please wait ...

Industry Equipment

TrussedGantryCrane

Truss Gantry Cranes

Capacity: up to 200t
Span Length: up to 100m
Advantage: Trussed structure can bear large wind pressure, best choice for open yeard.

SingleGirderGantryCrane

Single Girder Gantry Cranes

Capacity: up to 50t
Span Length: up to 50m
Advantage: cover more work area, no need to built warehouse.

SemiGantryCranes scaled

Semi Gantry Cranes

Capacity: up to 10t
Span Length: up to 20m
Advantage: cover more work area

crane 2

Double Girder Gantry Cranes

Capacity: up to 800t
Span Length: up to 100m
Advantage: cover more work area, no need to built warehouse.
