Electric Motor Grab for Efficient Material Handling

  • Electric motor grab is used in mines, steel mills, aluminum mines, ports and docks, large breeding farms, coal washing plants, garbage dumps, wineries, and paper factories.
  • Electric motor grab is commonly used on multi-purpose cranes.
  • Electric motor grab has its own opening and closing mechanism, which can load and unload materials at any height.
  • The productivity is higher than that of a single-rope grab, it is easy to use, disassemble and hang, and the loading and unloading power is high.

Join Mailing List, Get Product Price List Directly to Your Inbox.

Product Introduction

It is used in mines, steel mills, aluminum mines, ports and docks, large breeding farms, coal washing plants, garbage dumps, wineries, and paper factories.

Electric motor grab is commonly used on multi-purpose cranes.

It has its own opening and closing mechanism, which can load and unload materials at any height.

The productivity is higher than that of a single-rope grab, it is easy to use, disassemble and hang, and the loading and unloading power is high.

It is suitable for grabbing all kinds of loose materials, such as ore, sand and gravel, slag, ore powder, coke, coal, loose clay, silt, garbage, lead and aluminum blocks, gravel, scrap steel, pipelines, iron sheets, potatoes, and salt. It has a large grabbing capacity and is most suitable for grabbing ore.

The grab adds a cable reel to transport energy according to the lifting height.

The electric motor grab cannot operate underwater.

Electric motor grab is divided into two categories: high-power and low-power

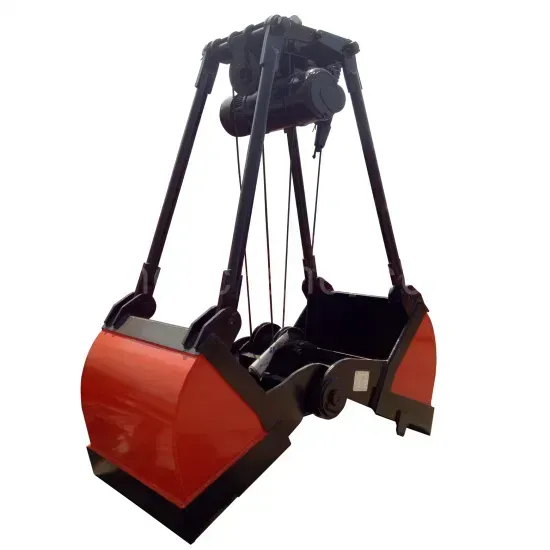

Electric motor grab, high-power grab (with winch)

electric motor grab 2

Technical parameter

ModelVolume (m³)TypeThe rate of material (t/m³)Capturing the material (t)The rate of pulleyThe dia. of steel rope (mm)The dia. of pulley (mm)Power  (Kw)Grab self weight (t)Using crane (t)Total height of catching filler H (mm)Opened height H1 (mm)Closed length  (mm)Opened length  B (mm)Grab width  C (mm)Leve height  S (mm)
ZD151.5heavy≤235Φ15Φ350152.9535604145195028001450680
ZD202heavy≤245Φ15Φ35018.53.61038704490230030001400720
ZD252.5heavy≤255Φ16Φ400224.41041004800250031001650680
ZD303middle≤1.23.65Φ16Φ400224.681041404860250032001896680
ZD606light≤165Φ16Φ400225.615454051902800370021961050
ZD101heavy≤2.52.54Φ15Φ350112.8534674052210026001100577
ZD505light≤154Φ17.5Φ400224.110444047202800370020351000

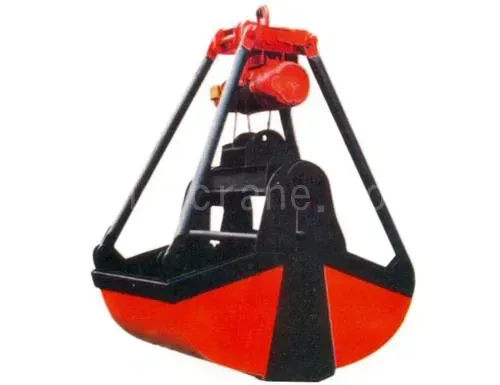

Electric motor grab, low-power grab (with hoist)

electric motor grab 3

Technical parameter

ModelVolume (m³)TypeThe rate of material (t/m³)Capturing the material (t)The rate of pulleyThe dia. of steel rope (mm)The dia. of pulley (mm)Power (kW)Grab self weight (t)Using crane (t)Total height of catching filler H (mm)Opened height H1 (mm)Bucket size (mm)Maximum opening size S (mm)
ACS
D30.3heavy≤ 1.50.454Φ7.7Φ2501.50.9521850222012007503601500
D50.5heavy1.6~2.41.24Φ11Φ25031.3232280253013658965401970
D70.75heavy1.6~2.41.84Φ12.5Φ2504.51.4232385265016309505702200
D101middle0.8~1.21.24Φ15Φ2504.51.52326202970190010806302600
D151.5middle0.8~1.21.84Φ15Φ2507.51.95526202970192011787802700
D202middle0.8~1.22.44Φ15Φ2507.52.05528303200200013007802900
