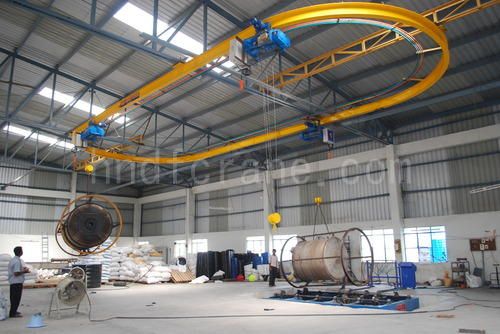

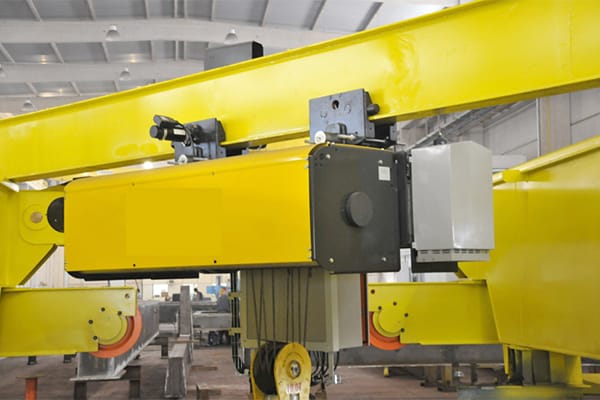

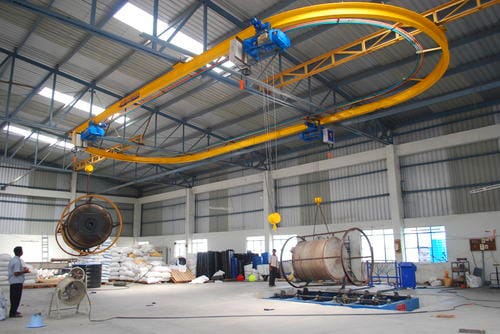

Monorail Cranes

Capacity: up to 20t
Duty Group: A3
Work Environment Temperature: -25°C〜+40°C, relative humidtiy ≤85%
Applications: It can be used for continuous non-reloading transportation of level and inclined alleys, and its transport load is not limited by the conditions of the bottom plate, and can be operated on various vertical curves, flat curves and complex curves.
Reference Price Range: $500-20,000/set

Join Mailing List, Get Product Price List Directly to Your Inbox.

Documents

Dafang Overhead Crane and Gantry Crane Catalogue

9.81 MB

Loading data, please wait ...

Product Introduction

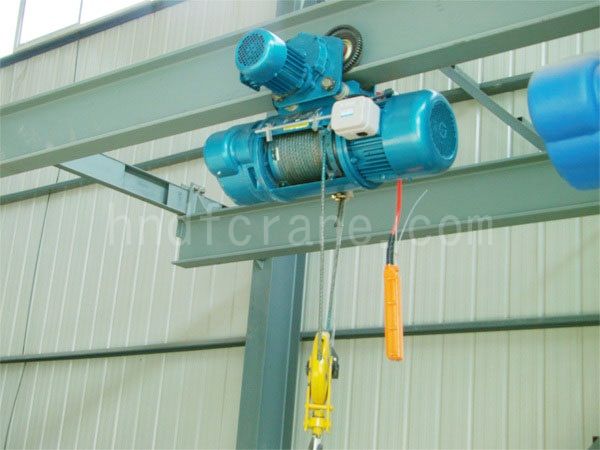

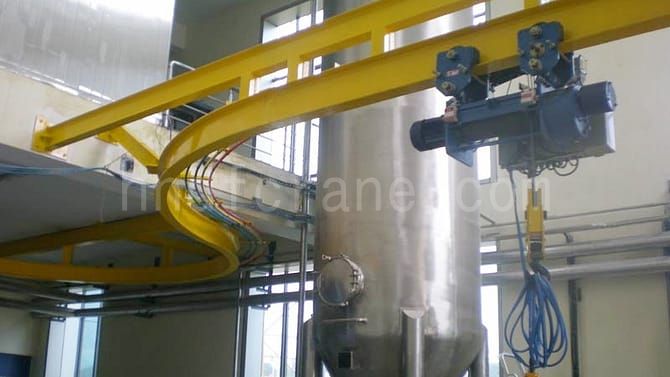

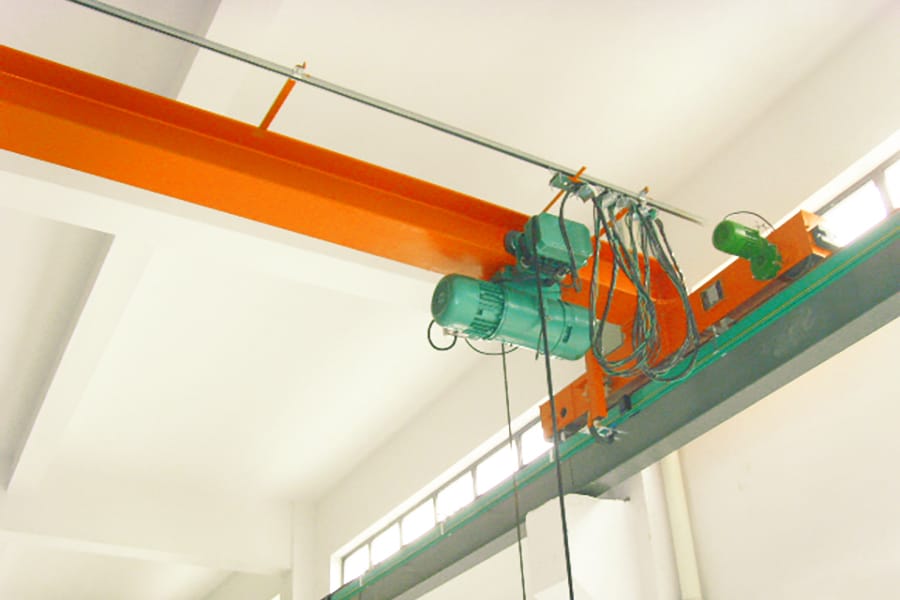

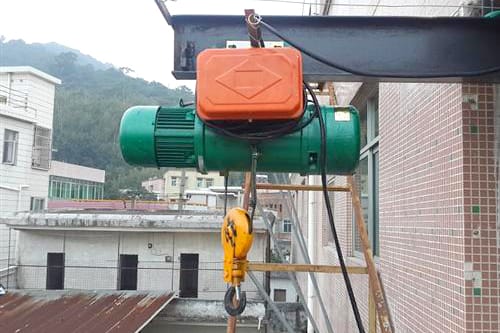

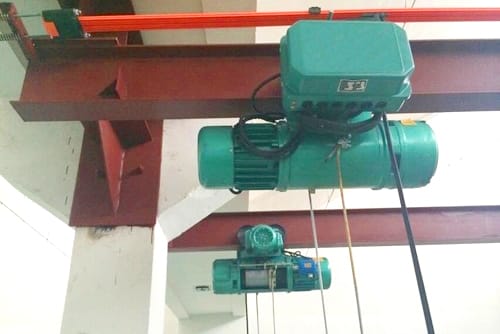

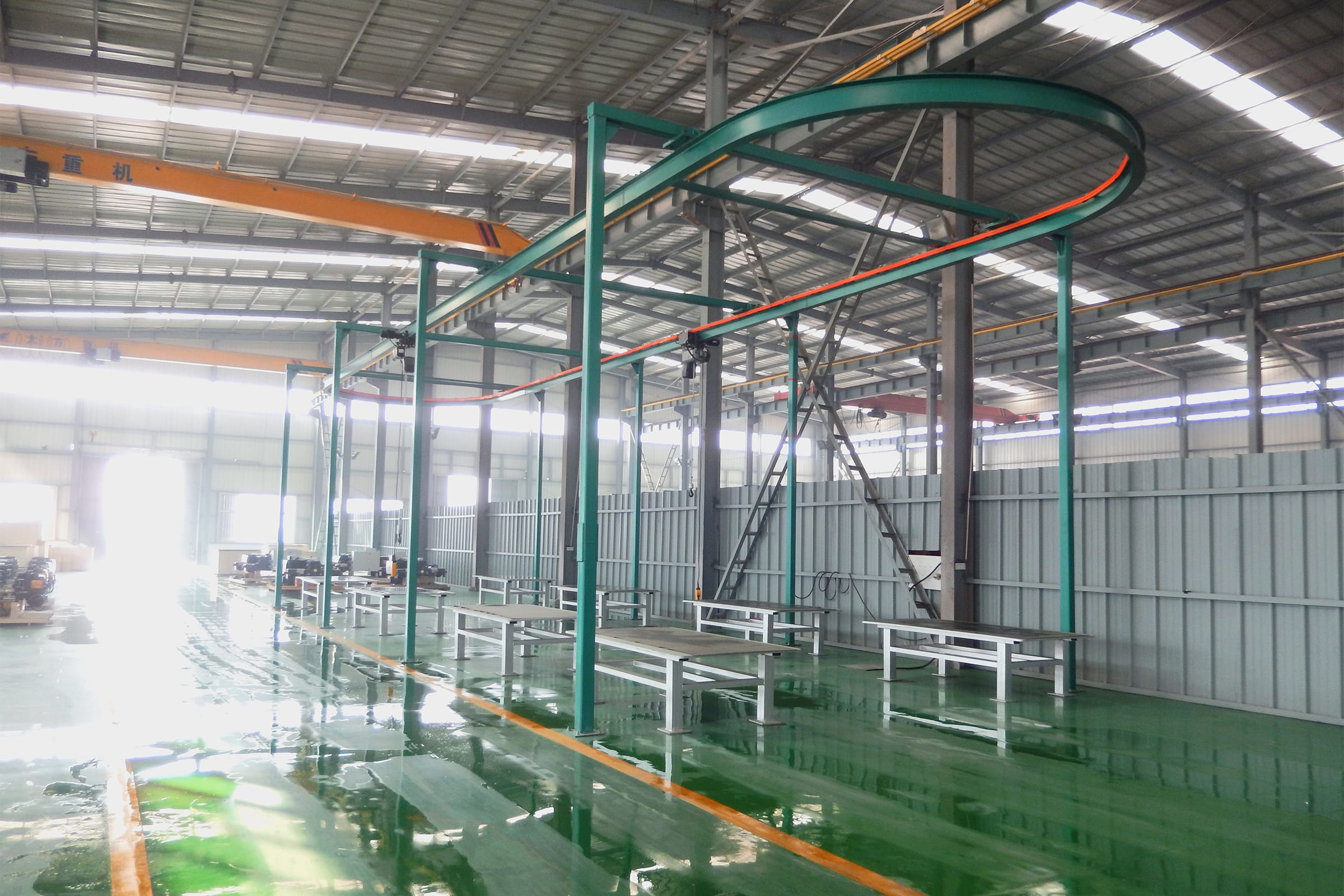

Monorail cranes are most effective in production applications where materials are repetitively moved from one point to another. The monorail hoist and trolley run on a single stationary beam, normally include H-beam or I-beam.

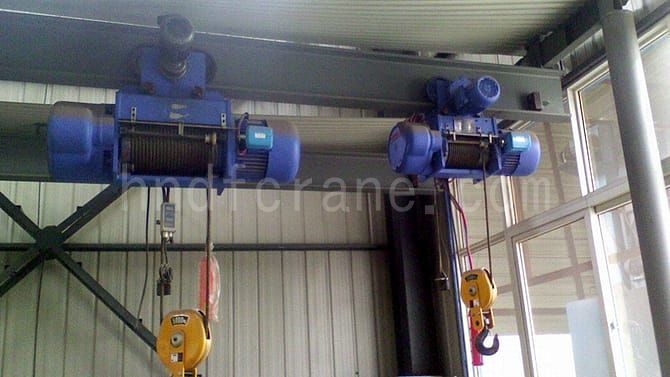

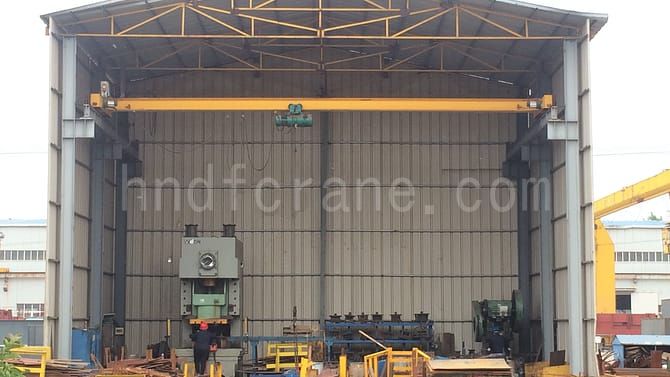

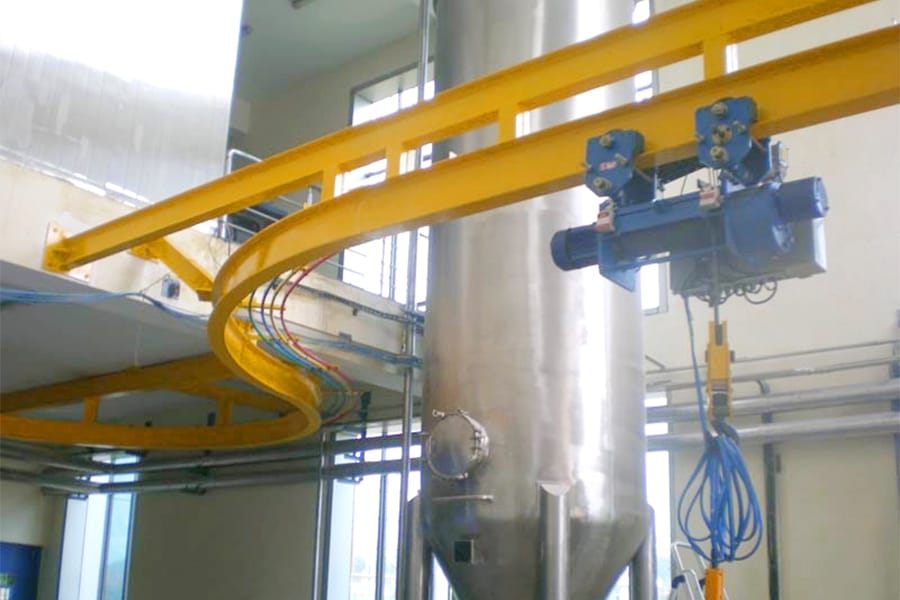

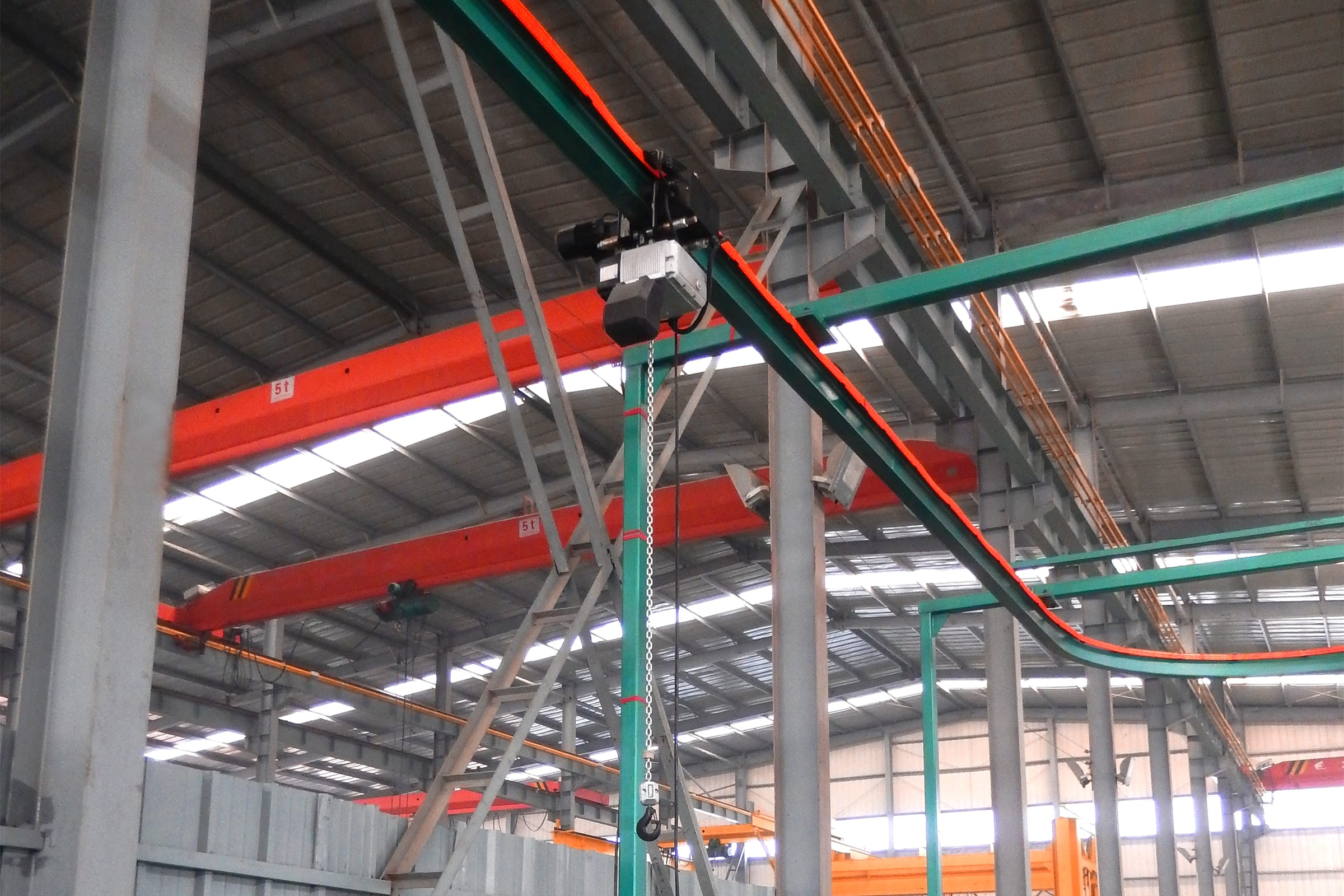

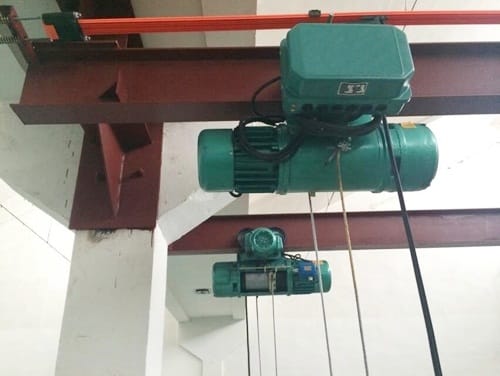

Examples include assembly operations, transport of materials to workstations and lines where parts are blasted, painted or coated. Monorails also serve as a material handling alternative in places that cannot accommodate a bridge crane.

Technical Features

Improve labor efficiency
Safe and reliable brake
Long service life
Maintenance is convenient
Use a safe
Light weight

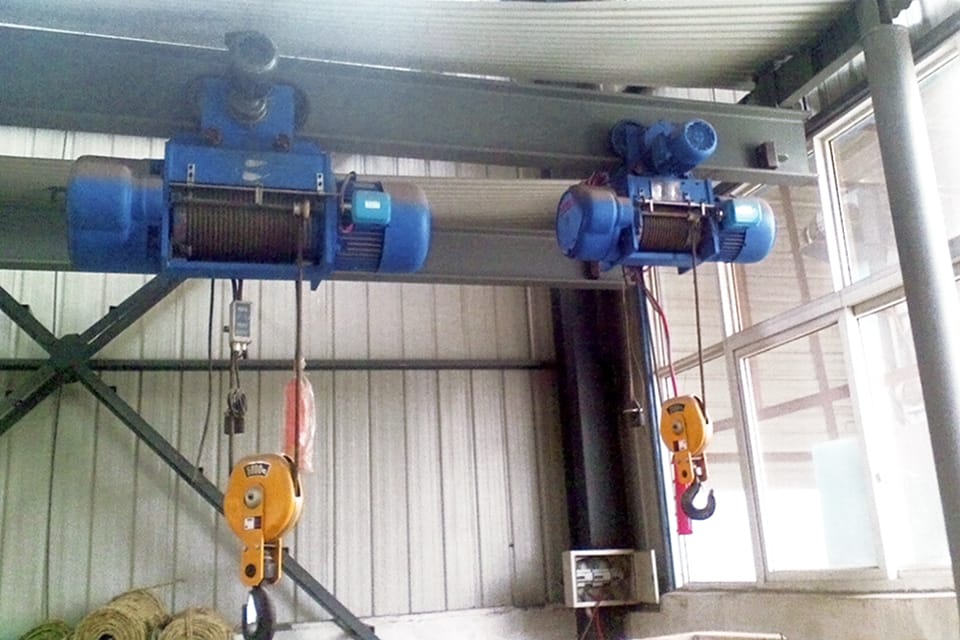

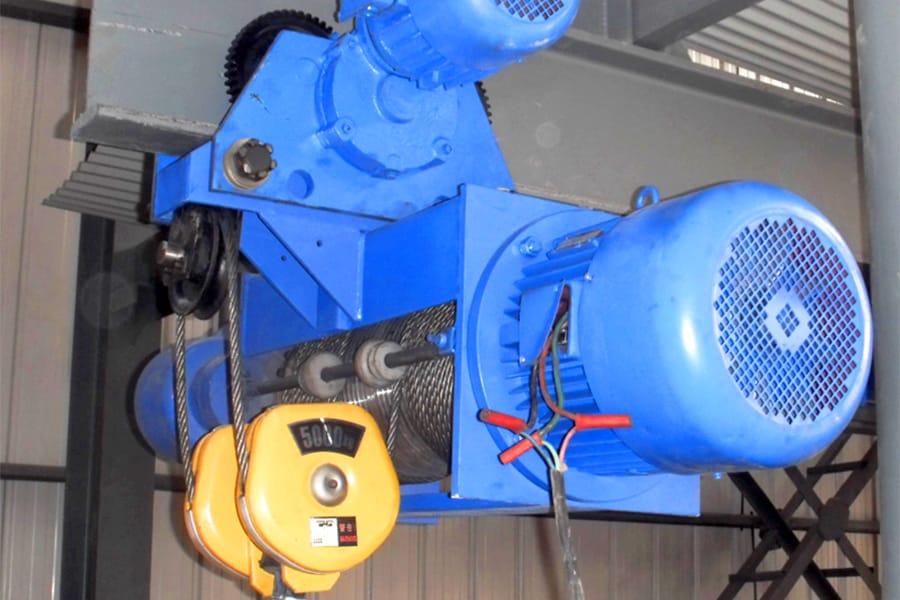

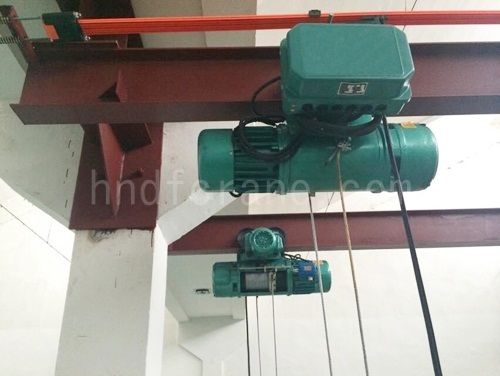

H Beam & I Beam for Monorail Hoist

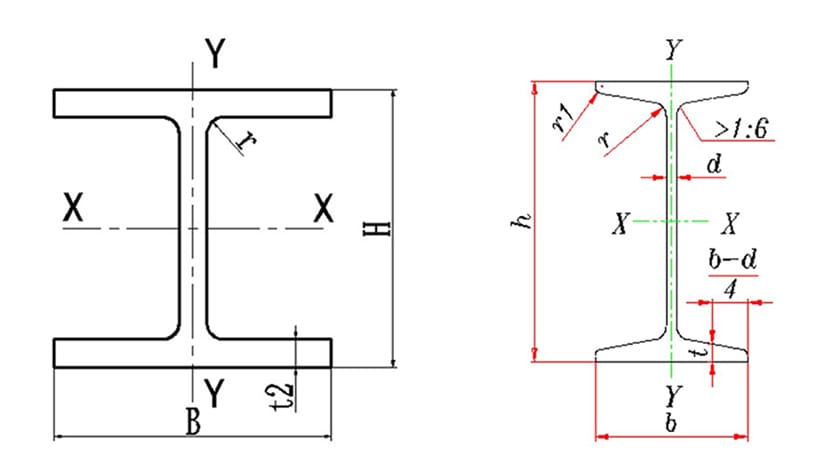

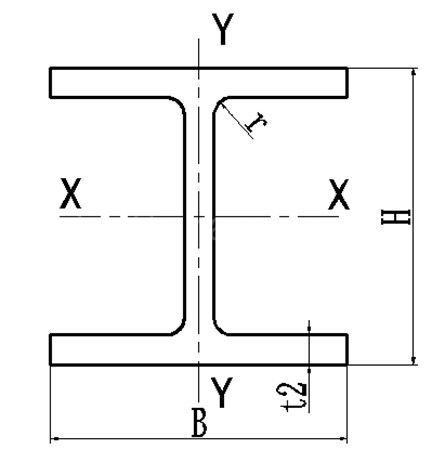

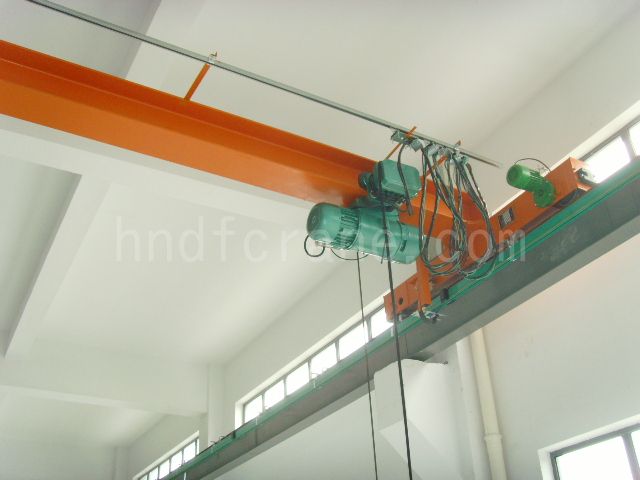

H beamPic

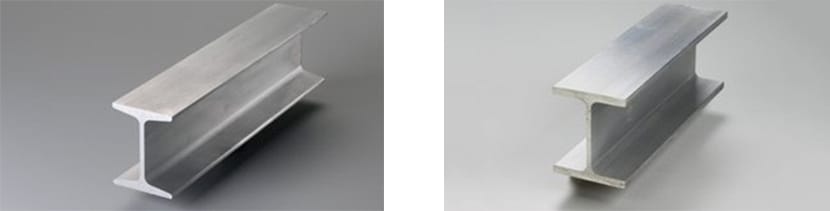

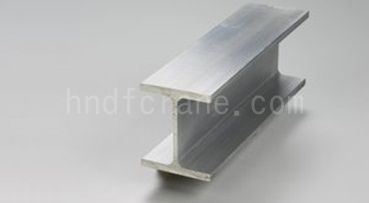

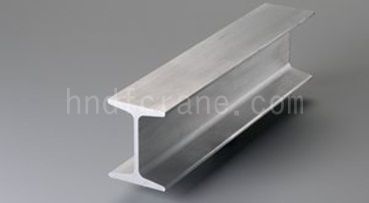

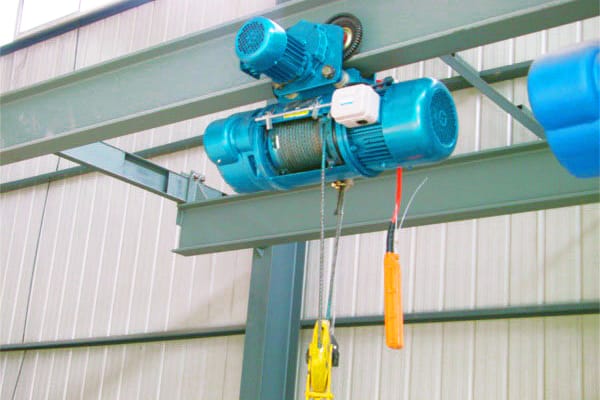

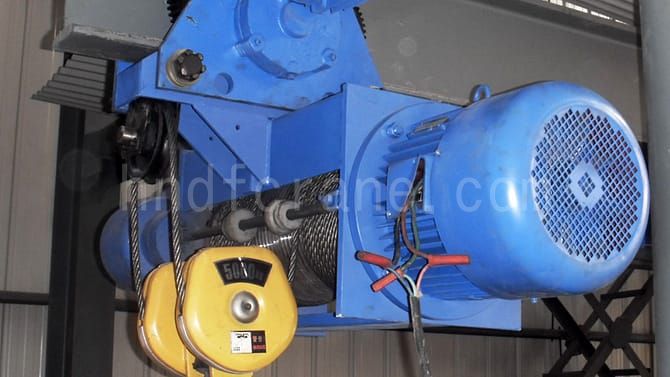

I beam of Monoral Crane

Some Specification of H Beam(According to practical choose different model)

Type	ModelHeight*Width	Section Size mm				Section Areacm2	Weightkg/m
Type	ModelHeight*Width	H*B	t1	t2	r	Section Areacm2	Weightkg/m
HW	100*100	100*100	6	8	10	21.9	17.2
	125*125	125*125	6.5	9	10	30.31	23.8
	150*150	150*150	7	10	13	40.55	31.9
HM	150*100	148*100	6	9	13	27.25	21.4
	200*150	194*150	6	9	16	39.76	31.2
	250*175	244*175	7	11	16	56.24	44.1
HP	200*200	200*204	12	12	16	72.28	56.7
	250*250	250*252	14	14	16	82.05	64.4
	300*300	300*305	15	15	20	135.4	106

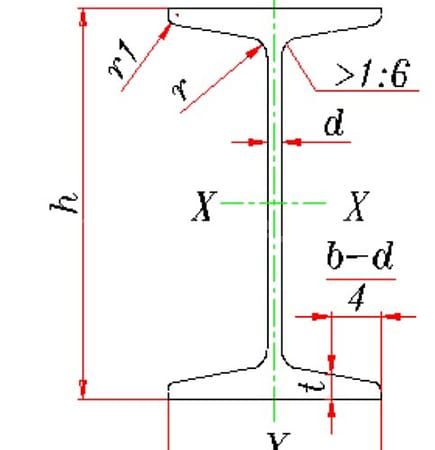

Some Specification of I Beam(According to practicl choose different model)

Type	Size mm						Section Areacm2	Weight kg/m
Type	h	b	d	t	r	rl	Section Areacm2	Weight kg/m
12.6	126	74	5	8.4	7.0	3.5	18.118	14.223
14	140	80	5.5	9.1	7.5	3.8	21.516	16.890
16	160	88	6.0	9.9	8.0	4.0	26.131	20.513
18	180	94	6.5	10.7	8.5	4.3	30.756	24.143
20a	200	100	7.0	11.4	9.0	4.5	35.578	27.929
20b	200	102	9.0	11.4	9.0	4.5	39.578	31.069
22a	220	110	7.5	12.3	9.5	4.8	42.128	33.070
22b	220	112	9.5	12.3	9.5	4.8	46.528	36.524
25a	250	116	8	13	10.0	5.0	48.541	38.105
25b	250	118	10	13	10.0	5.0	53.541	42.030
