10t Single Girder Overhead Crane

October 20, 2017

10t Single Girder Overhead Crane

preboard
2017-10-20

Key Facts

Country:
Philipines
Date:
2017-10-20
Qty:
1set

Technical Parameter

  1. Capacity :10t
  2. Span: 15.001m
  3. Lfit Height: 9.3m
  4. Lift Speed:7m/min
  5. Winch Travel Speed:20m/min
  6. Crane Travel Speed: 30m/min
  7. Voltage: 380V, 50HZ, 3AC

10t Single Girder Overhead Crane exported to philipines, this design is typical Chinese design with U shape main girder.

The production of this crane now is fully made by machines, can finish the production within one work, the production procedure is like following:

1500t pressure machine shape the main beam-weld the reinforcement steel plates-finish the main weld line with submerged weld machine-pre-assemble the main beam and end beam-quality department will measure all technical data.

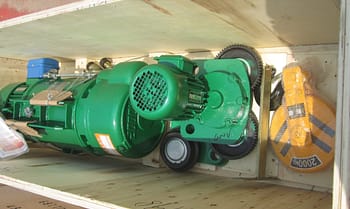

Electric Hoist 2 scaled

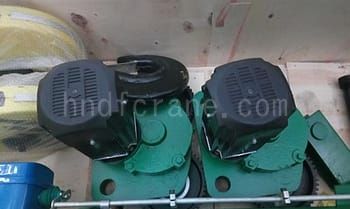

Hoist Travel Trolley

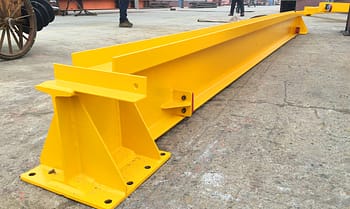

Main Beam

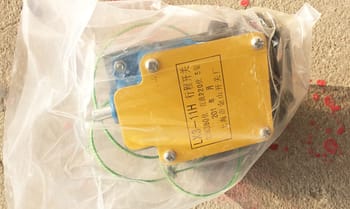

Overload Limit Switch scaled

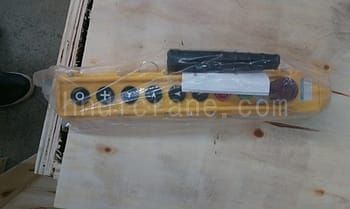

Pendent Push Button

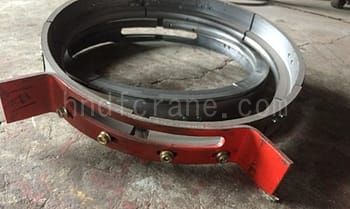

Rope Guider
