Product Description

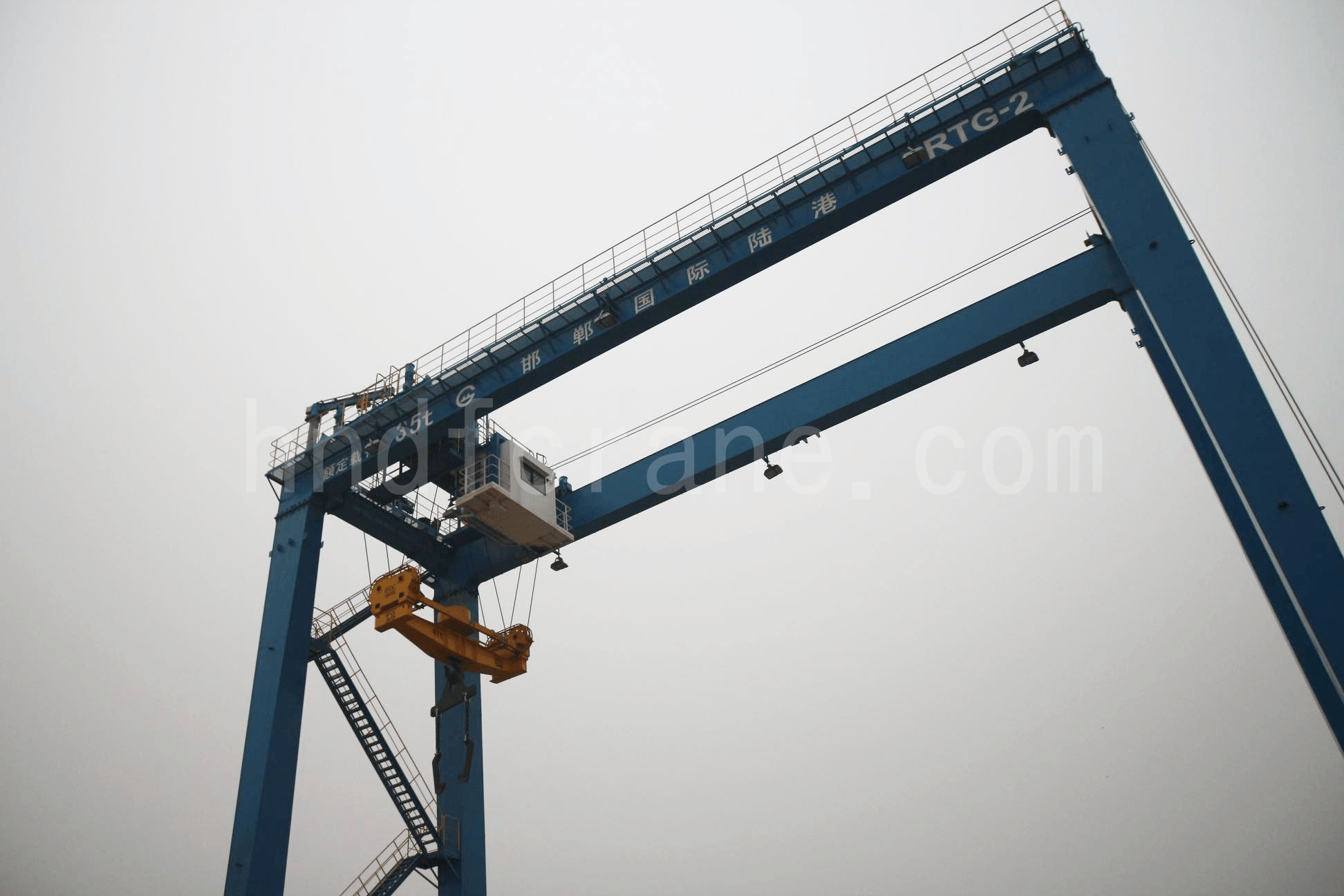

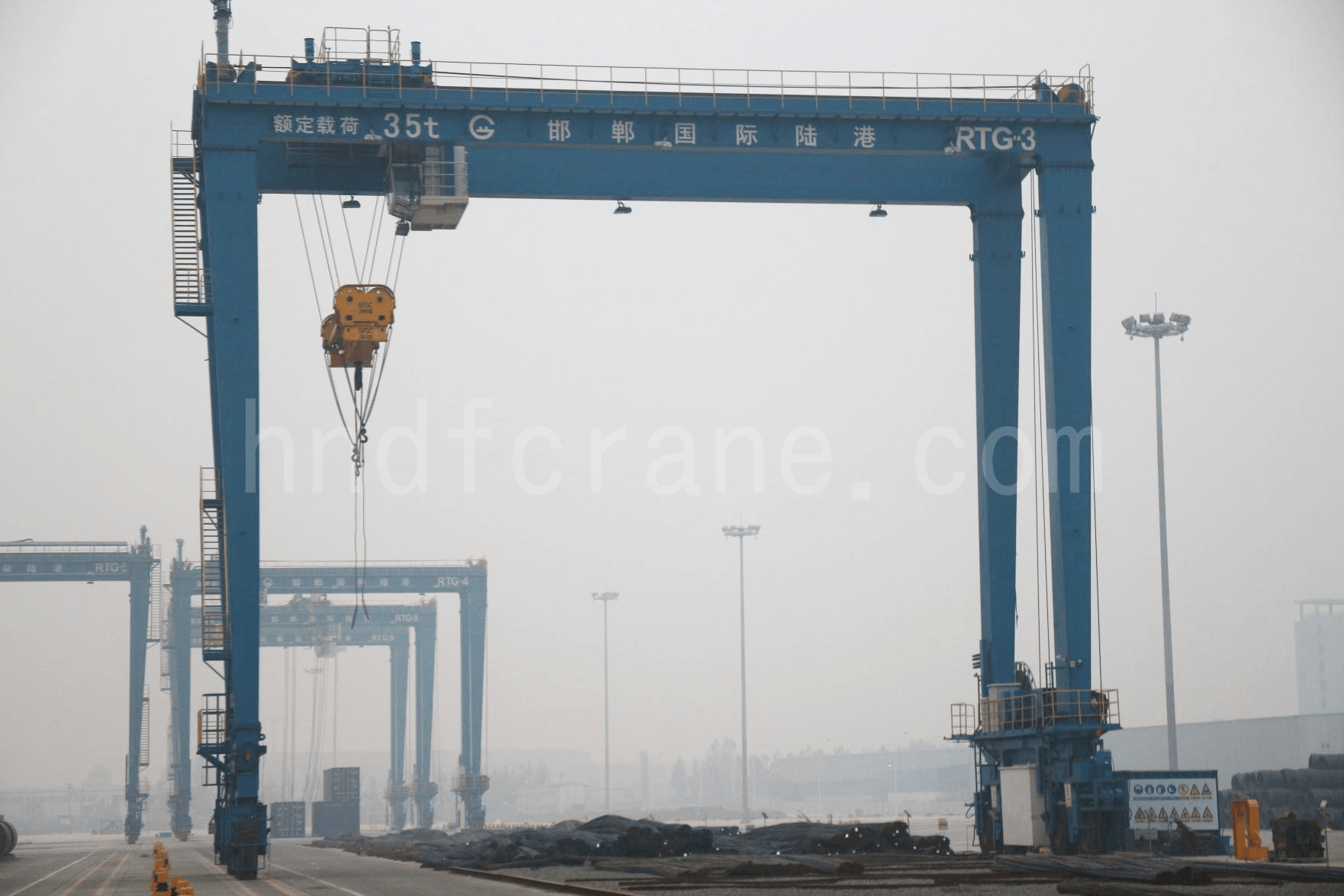

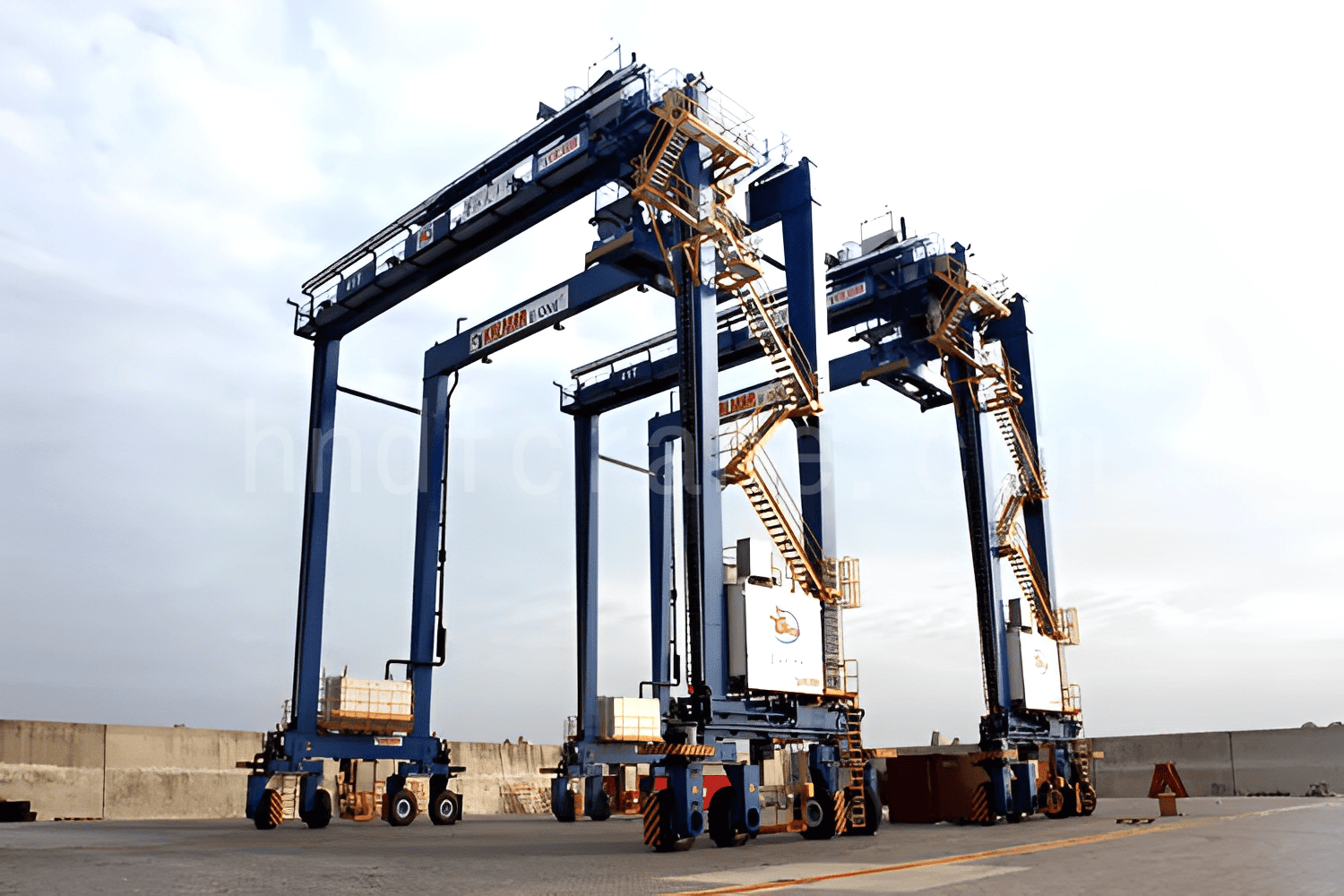

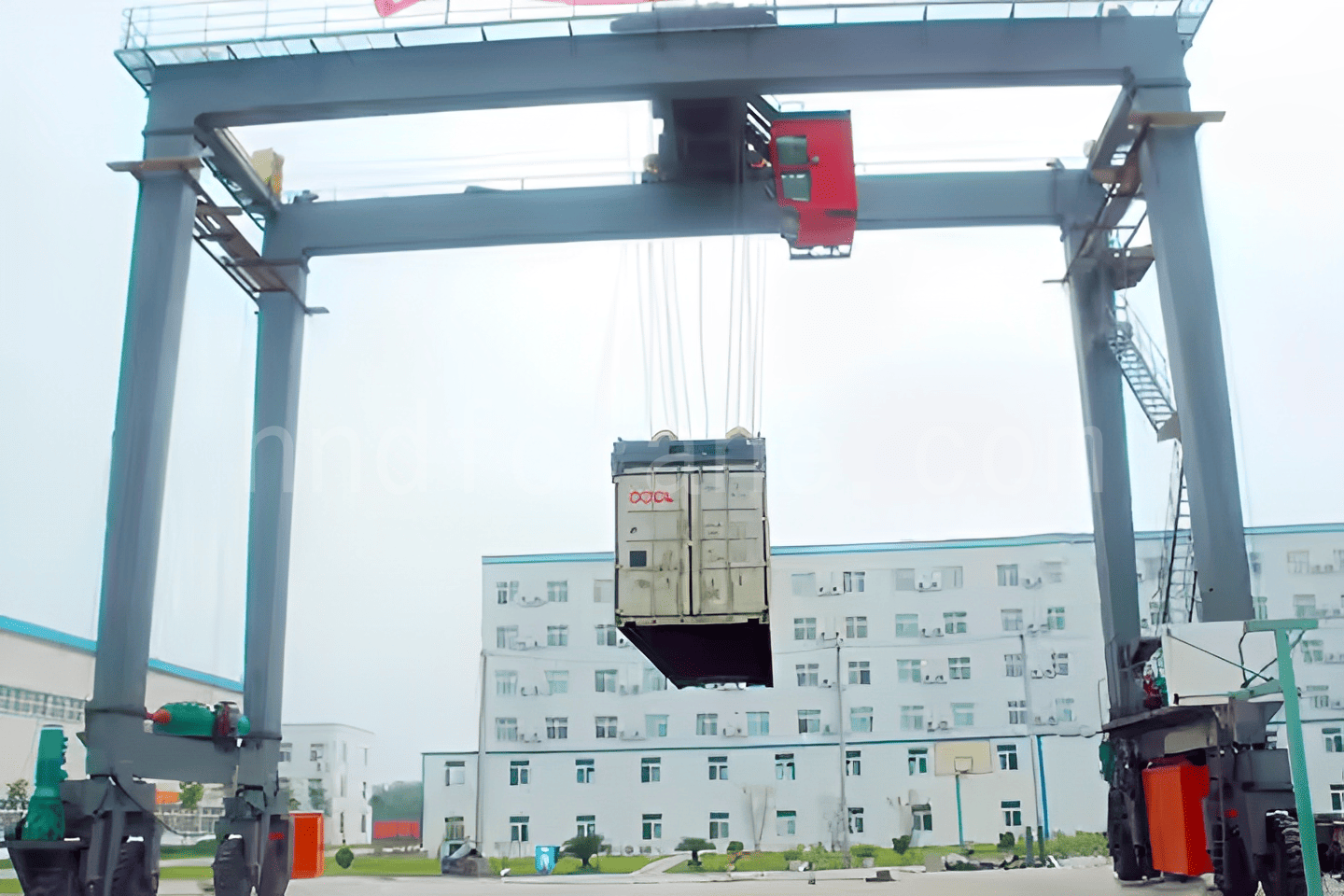

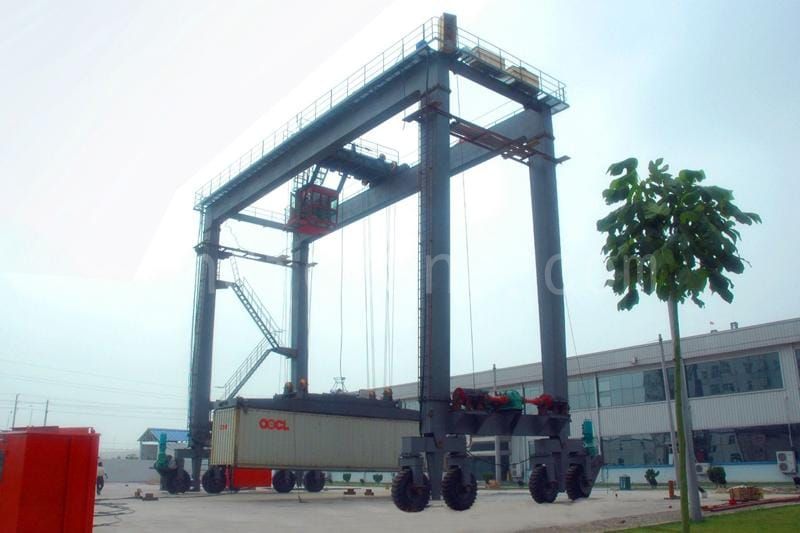

The rubber tyred container gantry crane is designed for handling and loading/unloading international standard containers.
This rubber tyred container gantry crane features advanced performance, high productivity, excellent mobility, and low sensitivity to ground unevenness. Powered by a diesel generator set, it is equipped with heating systems for the fuel and hydraulic systems, enabling operation in low-temperature environments. It includes comprehensive safety and overload protection devices to maximize the safety of both operators and equipment. The electrical system uses PLC variable frequency control, allowing precise control of all mechanisms.
Key components are sourced from renowned domestic and international manufacturers to ensure the overall quality of the machine. The design, manufacturing, and inspection of the rubber tyred container gantry cranes comply with advanced international standards such as DIN, FEM, IEC, AWS, and the latest national standards.
Features

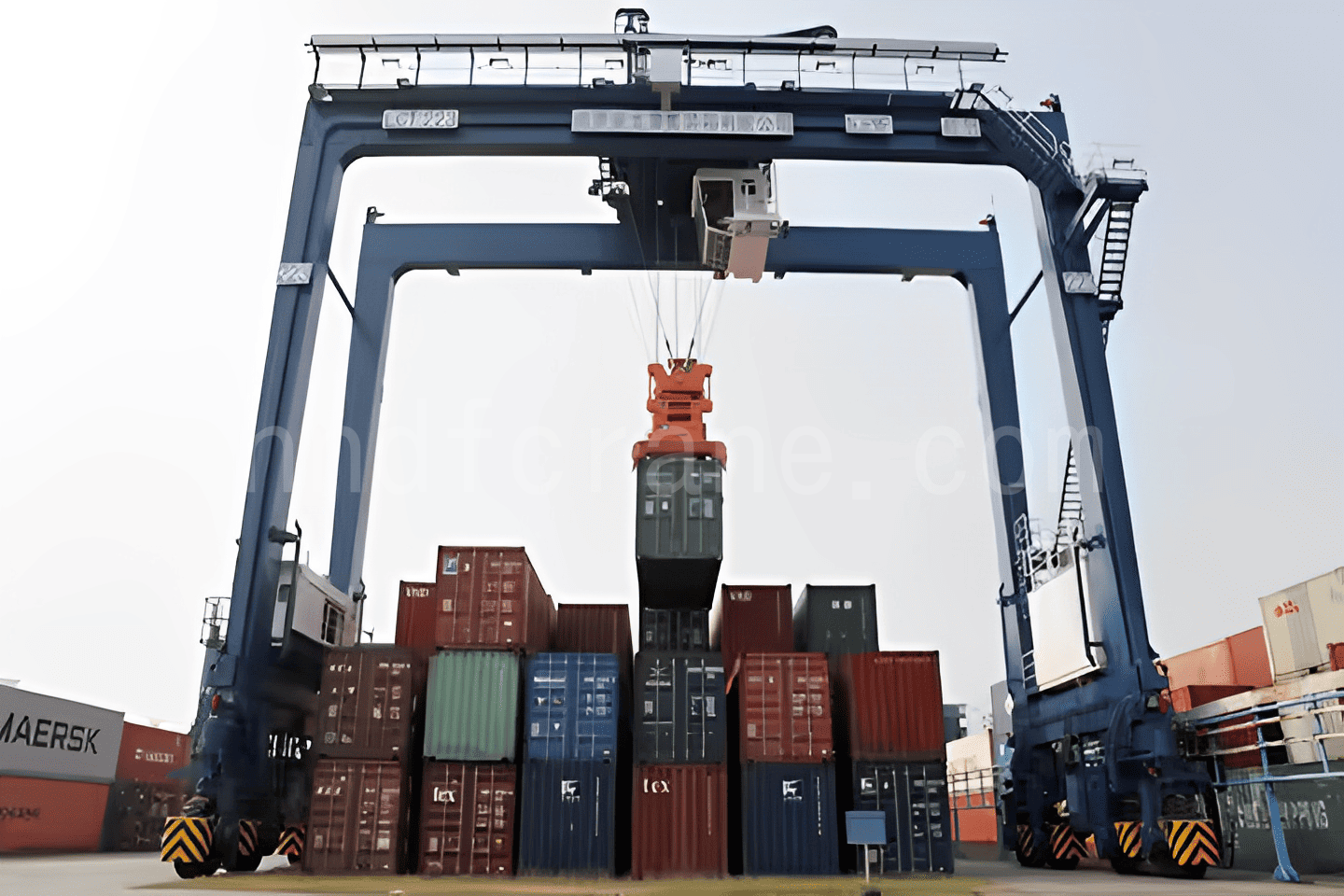

- Rubber tyred container gantry cranes are specialized machinery used for container stacking operations, widely applied in port terminals and container yards.
- Equipped with specialized container spreaders, they can lift 20′, 40′, and 45′ standard containers as well as hydraulic storage tanks.
- The trolley and crane travel mechanisms use integrated three-in-one reducers, facilitating easy maintenance.
- The tires offer 90° steering for relocation operations and provide oblique travel functions at 20° or 45°.
- The electrical system adopts PLC variable frequency control, and the rubber-tired container gantry crane’s travel mechanism includes a dedicated anti-skew device.
- Features include overload protection, diesel engine overspeed protection, high water temperature, and low oil pressure alert systems.
- Additional safety devices include a wind speed indicator, anti-typhoon anchoring device, emergency stop buttons, and limit switches with signal indicators for all mechanisms.
Technical Specification
| Capacity | t | 35 | |
|---|---|---|---|
| Span | mm | 17250 | |
| Lifting height | 15200 | ||
| Work duty | A7 | ||
| Speed | Full load | m/min | 20 |
| No load | 50 | ||
| Trolley travel | 7~70 | ||
| Crane travel | 12~120 | ||
| Number of container stacking layers | 4 | ||
| Container specifications | 20′, 40′ | ||
| Main dimensions | C1 | mm | 1035 |
| C2 | 1035 | ||
| H | 22420 | ||
| H1 | 15200 | ||
| B | 12000 | ||
| W | 7000 | ||
| K | 6400 | ||
| Maximum wheel load | KN | 290 | |
| Total motor power | kw | 310 | |
| Power supply | Diesel generator set | ||
