Single Girder Overhead Cranes

  • Capacity: up to 20t
  • Span Lenght: up to 31.5m
  • Duty Group: A1-A3
  • Work Environment Temperature: -25°C〜+40°C, relative humidtiy ≤85%
  • Applications: This crane is mainly used in steel stock yard, mine, the concrete industry, warehouse, factory, harbor and ship building, etc. overhead crane a common feature of many industrial workplaces serving various lifting applications.
  • Reference Price Range: $1,500-20,000/set

Join Mailing List, Get Product Price List Directly to Your Inbox.

Documents

download

Dafang Single Girder Overheade Crane Operation Manual

1.46 MB
Loading data, please wait ...
LOAD MORE

Product Introduction

Single girder overhead cranes are the most cost effective purchase for capacity 20 tons and 18m span. The single girder overhead crane is usually classed as 3 types, LD type , low headroom type, LDP type. It is widely and popular used for generic workshop, warehouse, material yard, etc. Which lifting mechanism is matched with CD (single lifting speed)/MD (double lifting speed) electric hoist. It is consist of the following parts: End trucks——Located on either side of the span, the end trucks house the wheels on which the entire crane travels. These wheels travel on the runway beam allowing access to the entire length of the bay. Bridge girders——The principal horizontal beam of the crane bridge which supports the trolley and is supported by the end trucks. Hoist——The hoist is mounted on the main girder, there are two basic types of hoist. The wire rope hoist which is very durable and will provide long term, reliable usage. The other type is Chain hoist, which used for lower capacity, lighter duty accplications and for projects in which cost is a primary deciding factor.

Technical Features

  • High reliability components
  • Excellent operating performance
  • Specially designed
  • Suited for general work
  • Highly effective
  • Low operation noise

Configuration

Configuration Lifting Mechanism(Hoist) Traveling Mechanism(Hoist) Crane Traveling Mechanism(Crane)
Motor Lifting motor: Nanjing factory Traveling motor: Nanjing factory Crane traveling motor: Nanjing factory
Reducer Lifting reducer: Dafang crane Traveling reducer: Dafang crane Crane traveling reducer: Dafang crane
Brake Lifting brake: Motor include Traveling brake: Motor include Crane traveling brake: Motor include

A Standard Single Girder Overhead Cranes Will Be Produced in 20 Days.

Design Production Drawings

Design Production Drawings

 Steel Plate Unrolled

Steel Plate Unrolled

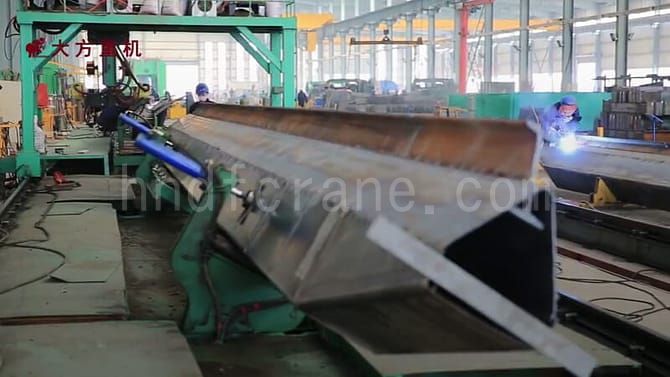

 Main Beam Welding

Main Beam Welding

 End Beams Processing

End Beams Processing

 Pre assemble

Pre-assemble

 Production Of The Hoist

Production Of The Hoist

 Electrical Control Unit

Electrical Control Unit

 Inspection Before Delivery

Inspection Before Delivery
Tips: Lead time of cranes with different voltage may be 10-15 days longer, as electrical components need to be customized by our supplier.

Products Details

SingleOverhead EndBeam

End Beam

To linked with main girder, for crane traveling, Usually have normal typy and european type end beam.

SingleOverhead Cable

Cable

Hang on the coil holder, for hoist power supply, normal we equipped flat type cable, also have explosion-proof type.

SingleOverhead GirderSection

Girder Section

Make main girder divided into two or more parts, so it is more convenient for transport,and assemble

SingleOverhead ElectricHoist

Electric Hoist

Traveling on main girder, for crane lifting. Usually equipped CD/MD/ Low head room hoist by different crane.

SingleOverhead MainGirder

Main Girder

Linked with end beam, for hoist traversing, usually design normal type and box type to meet customer’s request.

SingleOverhead ElectricEquipments

Electric Equipments

For crane and hoist power supply, usually we equipped Schneider, Yaskawa, ABB brand

Different Types of single girder overhead crane

LD single girder overhead crane

LD single girder overhead crane

  • Widely used for normal workshop
  • The main girder is U type in the production process, and fully finished one time, reduce the stress concentration pont.
  • electric hoist travesing below the main gider
  • Lifting mechanism is equipped electric hoist (CD/MD type).
  • Cheap price with stable performance.
Low headroom type single girder overhead crane

Low headroom type single girder overhead crane

  • Usually used for the workshop which upper space is limit, but customer want to reach a specified lifting height. We design this solution to meet customer’s request.
  • The main girder is box type. Low headroom type electric hoist travesing below the main gider, but on both side of main girder.
  • Lifting mechanism is equipped low headroom electric hoist, but different with CD/MD hoist, the structure is different. And more artistic.
LDP type single girder overhead crane

LDP type single girder overhead crane

  • Usually used for the workshop whole height is limit, but customer want to reached a max lifting height, As the upper space is enough, We design this solution to meet customer’s request
  • The main girder is box type. Low headroom type electric hoist travesing on the main gider, but on one side of main girder.
  • Lifting mechanism is equipped LDP type electric hoist, different with other two type hoists.
Underslung single girder overhead crane

Underslung single girder overhead crane

  • Underslung crossing the rail crane is special crane for thermal power plant mill house, mainly for coal grinding equipment maintenance, lifting and handling general parts
  • Operating principle: single beam (or single fixed rail),connect with double girder crane which runs on the I-beam track.
  • It is similar with normal type LD single girder overhead crane, just traveling below the runway beam.
  • Also usually equipped with CD/MD electric hoist.

Application Examples

Installation completed582 346 January 18, 2022

1 Set Of European Design Type Single Girder Overhead Cranes Exported to Mexico
Package picture1 November 19, 2018

1 Set 5t HD Model Single Girder Overhead Crane Delivery To Bolivia
Delivery 01 1 December 04, 2016

1 Set 5T LD Model Single Girder Overhead Crane Delivery To Russia
end beam June 12, 2016

1 Set 5T LDA Single Girder Overhead Crane Exported To Bangladesh
